NFA35-016 FRANCH FABRIC STANDARD welded rebar mesh

Name: NFA35016 FRANCH FABRIC STANDARD welded rebar mesh
Brand: NFA35-016 FRANCH FABRIC STANDARD
Price: 350 USD

Quality NFA35-016 FRANCH FABRIC STANDARD welded rebar mesh for sale

Brand Name : NFA35-016 FRANCH FABRIC STANDARD

Model Number : Ribbed Square Mesh

Certification : ISO

Place of Origin : China

MOQ : 10tons

Price : 350$-650$/ton

Payment Terms : T/T

Supply Ability : 1000ton per year

Delivery Time : 14 days

Packaging Details : metal pallet

Materials : Q235

Size : 2.4mx6.0m

Standard : Australia 4671

Tensile : MPA550

Application : Wall Materials,Protecting Mesh,floor,construction,Heat Insulation Materials

Width : 20cm-200cm,1m,1m or as client's request,100-2200mm,1.2m

Material : Galvanized Steel Wire,Black Wire Mesh,Stainless Steel Wire,strong carbon steel wire

Color : blue,orange

Alkali content : Medium,Alkali Free

Weave type : Plain Woven,Twill Woven

Yarn type : C-Glass

Mesh size : 5*5mm,4X4 5X5 4X5 8X8 10X10mesh,4 MM X 4 MM,4mm*4mm 5mm*5mm 8mm*8mm 9mm*9mm

Weight : 160g/m2,75gsm-300gsm,30gsm-180gsm Etc,40g/m2 - 200g/m2,75gsm

Standing temperature : 500,High Temperature,common,220

Length : customer requirements

Technique : Welded Mesh

Weave style : Plain Weave

Type : Welded Mesh

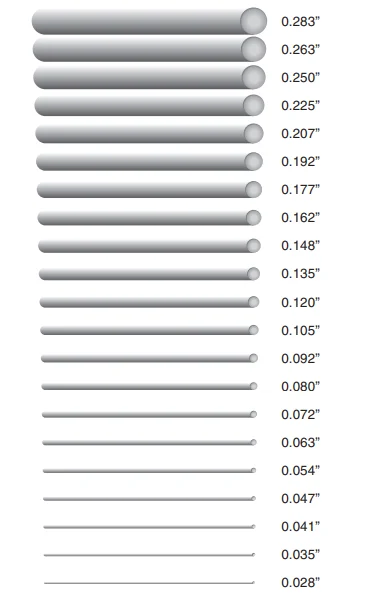

Wire diameter : Requirement,1-9mm,5-16mm

Usage : Construction,Bird sanctuaries,Rabbit cages kennels Enclosures

Product name : 4.5oz Alkali-resistant Fiberglass Reinforcing Mesh For Wall,WELDED WIRE MESH,Factory Alkali-Resistant Fiberglass Mesh fiberglass wire mesh,High quality 1/4''welded wire mesh supplier,galvanized welded wire fence panels in chinese market

Feature : Alkaline-resistant,Corrosion Resistance,strength,Flexible soft,Durable

Surface treatment : Hot Dipped Galvanized,Galvanized,Polished,hot dip glvanized; galvanized+PVC Coated,Untreatment

Contact Now

NFA35-016 FRANCH FABRIC STANDARD welded rebar mesh

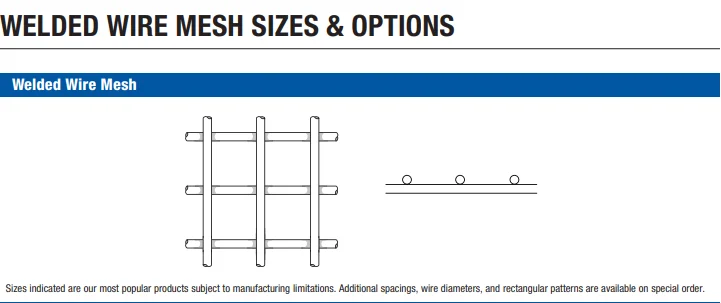

Welded wire mesh

Longitudinal and cross wires are resistance welded at every intersection with a tight metallurgical bond. The metallic wire mesh can be flexible or rigid, light and open, or heavy and strong. We have more than 60 years of experience in welding wire mesh and we continue to improve our process and products utilizing state of the art welding equipment. Our innovative and motivated team produces precise mesh and can fabricate accurate products that will meet your requirements.UsageFrom aerospace to reinforcement in construction, our welded mesh is used in all kinds of industries. Someapplications are: guards, materialhandling,separation, security and decoration. We have a wide variety of standards available. If we do not have the specification you need in stock (material, opening, wire diameter and surface condition) we will produce it according to your needs.

Specifications

NFA35-016 FRANCH FABRIC STANDARD


ITEMS	WIPE DIAMETER		PITCH OF WIRES		SHEET DIMENSION		(㎡)	CROSS AREA		(㎏)	(㎏/㎡)
MESH							SHEET			SHEET	SHEET WEIGHT PER
TYDE	LONG	CROSS	LONG	CROSS	WIDTH	LENGTH	AREA	LONG	CROSS	WEIGHT	SOUARE METER
PPAF R	4.5	4.5	200	300	2400	3600	8.64	80	53	9.000	1.042
PPAF C	4.5	4.5	200	200	2400	3600	8.64	80	80	10.800	1.250
PPAF V	4.5	4.4	200	160	2400	3200	7.68	80	99	9.600	1.250
PST 10	5.5	5.5	200	200	2400	4800	11.52	119	119	21.542	1.870
PST 20	6.0	7.0	150	300	2400	6000	14.40	188	128	35.808	2.487
PST 25	7.0	7.0	150	300	2400	6000	14.40	257	257	43.488	3.020
PST 30	6.0	7.0	100	300	2400	6000	14.40	283	128	46.464	3.227
PST 35	7.0	7.0	100	300	2400	6000	14.40	385	128	57.984	4.027
PST 45	9.0	8.0	150	300	2400	6000	14.40	424	168	66.864	4.643
PST 50	8.0	8.0	100	300	2400	6000	14.40	503	168	75.840	5.267
PST 60	9.0	8.0	100	200	2400	6000	14.40	636	251	100.296	6.965
PST 25C	7.0	7.0	150	150	2400	6000	14.40	257	257	57.984	4.027
PST 40C	7.0	7.0	100	100	2400	6000	14.40	385	385	86.976	6.040
PST 65C	9.0	9.0	100	100	2400	6000	14.40	636	636	143.712	9.980

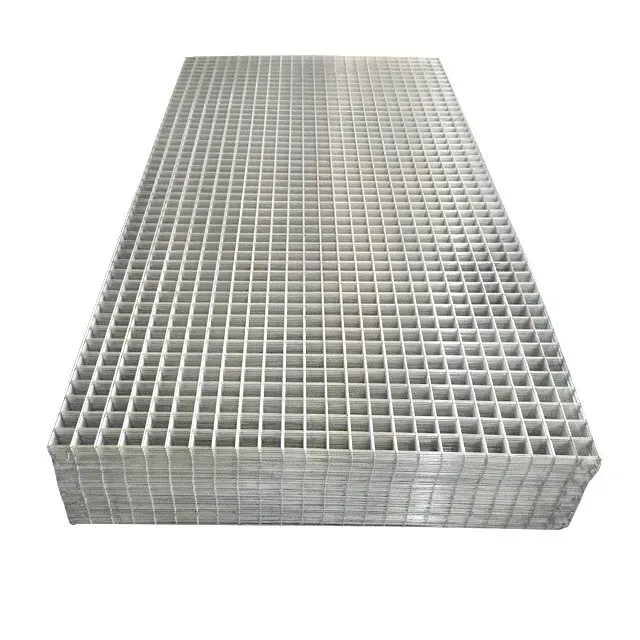

NFA35-016 FRANCH FABRIC STANDARD welded rebar mesh Images
