mining wire mesh vibrating screen mesh for stone crusher Australia Market

Brand Name : LN

Model Number : Crimped Wire Mesh

Certification : SGS,FORM E,ISO,FORM A,SGS/ISO

Place of Origin : China

MOQ : 100pcs

Price : 1.88$/m2

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 sqm per week

Delivery Time : 5-7 days

Packaging Details : pallet

Application : Filters,Screen,Woven Wire Mesh,Protecting Mesh,decorative wire mesh

Technique : Woven,Welded Mesh,Weave

Type : Crimped Wire Mesh,Weave Wire Mesh,Wire Cloth,Crimped Screen,Reinforced Mesh

Material : Stainless Steel Wire,Black Wire Mesh,copper,High carbon steel,SS304/SS304L/SS316/SS316L/SS310/Low carbon steel wire

Weave style : Plain Weave,twill,Dutch Weave,First roll,compound bending

Wire diameter : 0.5-10mm,0.025-1mm,0.7mm-6.0mm,Requirement,40-600micron

Hole shape : Square Hole,as per requirement

Color : Silver,Black,copper,stainless steel color,Customized

Length : 30m per roll or as required,customized,30m,50m/roll at customer request,0.5-5.8m

Product name : crimped wire mesh,65Mn steel wire Iron wire square Hole crimped wire mining screen mesh,architectural woven wire mesh,65Mn steel wire High Manganese Stainless Steel Woven Crimped Wire Mesh

Usage : coal industrial,screening coarse material,Speaker Grills,chicken wire mesh,construction industrial

Surface treatment : Untreatment,copper,powder coated Antique Bronze,Acid Washing,Powder Coating

Width : customized,1-5m,1.2m,0.5-2.2m,0.5-3m

Feature : Durable,Corrosion Resistance,beautiful,Anti-corrosion,Flexibility

Features : Durable,alkali-resisting etc.,Structure firm and durable,Acid resistant,Acid-resisting

Name : Stainless Steel Mesh Screen,double crimped wire mesh,mine screen mesh

Keyword : Stainless steel woven net,woven mesh,crimped wire mesh,galvanized square woven wire mesh

Hole size : 0.1-30mm

Contact Now

Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Name	Vibrating Screen Mesh
High carbon steel:	65Mn,45#,50#,55#,60#,70#,,72A
Wire diameter	0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening	2mm to 100mm,tolerance +-3%

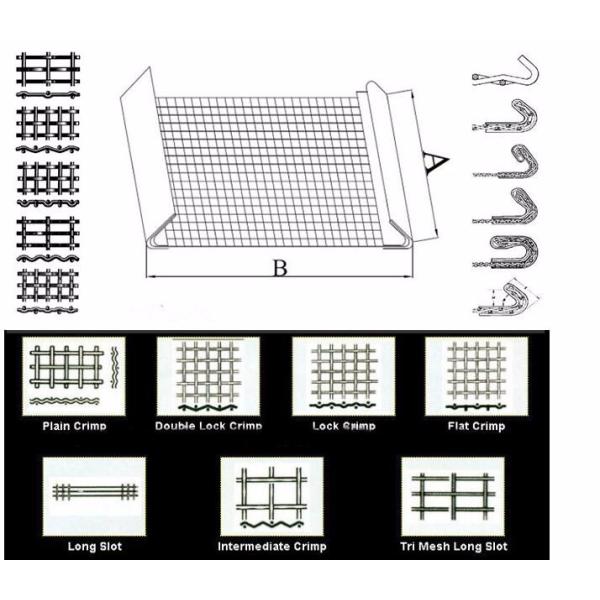

Weaving style:
 Plain weave Double crimped Intermediate crimped Flat top crimped

mining wire mesh vibrating screen mesh for stone crusher Australia Market

Features:

No tearing and abrasion 2.Placed above rubber beads to avoid metal to metal contact

Corrosion resistance 4. High temperature resistance

IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

 When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:

 The screen selected must achieve a compromise amongst these factors.

 When ordering screens the following technical aspects should be taken into account :

 Thickness of wire

 Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

Open Area

 This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

Mesh

 The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.

OEM/ODM Accept the following types of customization with Polyurethane collocation

Aperture or Opening Width

 This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm

Pre –Crimped Wire Screens
 ( Wire Crimped before weaving )
 These are generally used for 10 mesh and coarser . Pre –crimped wire screens have very accurate opening and are tightly woven. The wires have very little movement, resulting in:
 Pre-crimped wire screens are generally preferred when accurate sizing is important and for vibrating screens where tightness is important.
 Hooks and Hooks Strips on Vibrating Screens

Products Show

Stainless parameters

NO	Grade	chemical Composition
NO	Grade	C	Ni	Mn	Cr
1	304	≤0.08	8.0-11.0	≤2.0	18.0-20.0
2	321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
3	316	≤0.08	10.0-14.0	≤2.0	16.0-18.5
4	2205	≤0.03	4.5-6.5	2.5-3.5	21.0-24.0
5	2507	≤0.03	6-8	≤1.2	24-26

Carbon steel parameter:

NO	Grade	chemical Composition
NO	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

mining wire mesh vibrating screen mesh for stone crusher Australia Market Images
